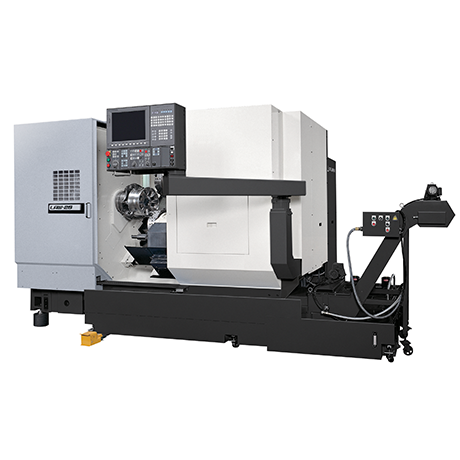

LAW-2S
OSP
OSP
Characteristics
| Aluminium wheel | Built-in spindle |
 |  |
| Application | S1 |
Model variations

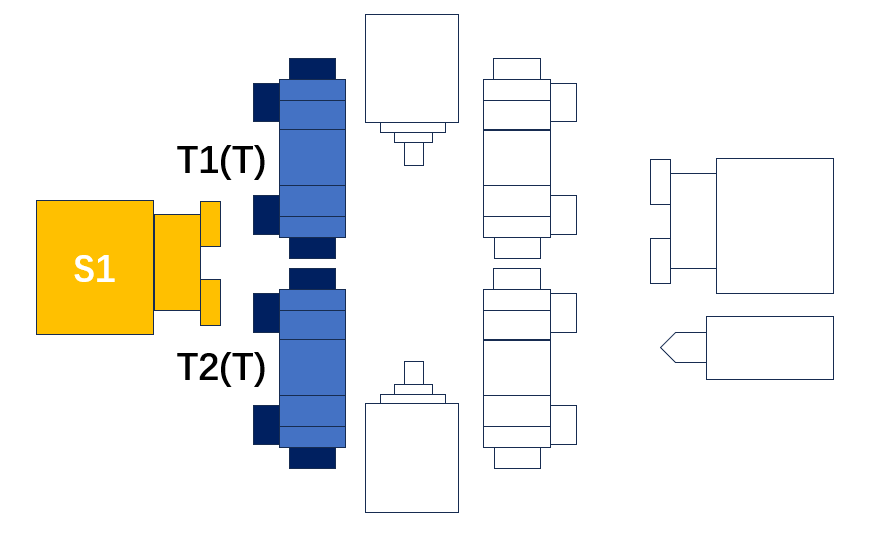

| 5610 HTC（1 Spindle+2 Turret TT+NoTailStock） |
 |
| Category | Item | Specification |
| Capacity | Swing over bed[mm] | 790 |
| Swing over saddle[mm] | 530 | |
| Workpiece | Workpiece diameter[mm] | 630(T1) 480(T2) |
| Max. Workpiece Diameter（Tool Post #1)[mm] | 630 | |
| Max. Workpiece Diameter（Tool Post #2)[mm] | 480 | |
| Tool post 1(T1) | No. of tool stations[ea] | 6 |
| Travels | Stroke X[mm] | 380(T1) 250(T2) |
| Stroke Z[mm] | 865(T1) 898(T2) | |
| Rapid traverse(X)[m/min] | 15 | |
| Category | CNC brand | OSP |
| CNC system | OSP-300L | |
| Origin | Japan |
Turning spindle 1(S1)
| Spindle name | S1-1 | Turning spindle no. 1 max. speed[r/min] | 200~3000 | Bearing inner dia.(front)[mm] | 130 | Interface(S1) | A2-8Available chucks | Turning spindle 1 thru hole dia.[mm] | 53 | Output[kW] | 45(Cont)！55(20min) | Torque[Nm] | Turning spindle 1 transmission | Built-in spindle |
Tool post #1(T1)
| Name | T1-1 | Tool holder | Tool shank | 32x25 | Boring bar | 63 | Position | 6 | Index time | 0.4 | Speed | Power | Torque |
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
